FSD– SERIES CARTRIDGE
FILTRATION SYSTEMS

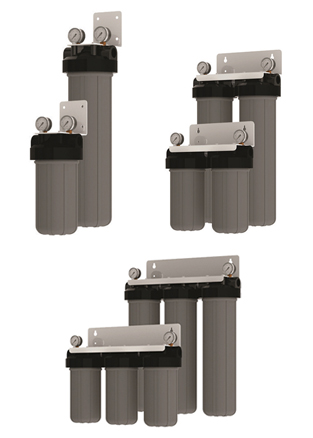

Product Images

FSD– SERIES CARTRIDGE FILTER SYSTEMS

AXEON® FSD– Series Cartridge Filter Systems feature a compact single, double or triple stage design and are available with 3/4” or 1” ports. These systems are ideal for water treatment applications that require additional pre or post treatment.


BENEFITS

  • High Quality Components
  • Customizable with Any Cartridge
  • Accommodates Standard 4.5” Diameter Cartridges
  • 1-Year Limited Warranty
  • Pre-Assembled and Easy to Install

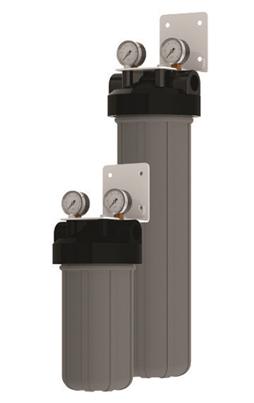

FSD –120 SERIES FEATURES

  • AXEON 0-100 psi Pressure Gauges
  • One 4.5” Diameter Grey and Black Pentek® Housings in 10” or 20” Lengths
  • One White Powder Coated Bracket
  • One Filter Housing Wrench

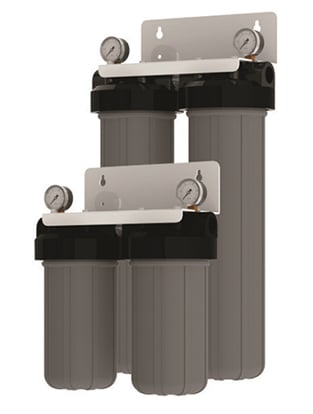

FSD –220 SERIES FEATURES

  • AXEON 0-100 psi Pressure Gauges
  • Two 4.5” Diameter Grey and Black Pentek® Housings in 10” or 20” Lengths
  • One White Powder Coated Bracket
  • One Filter Housing Wrench

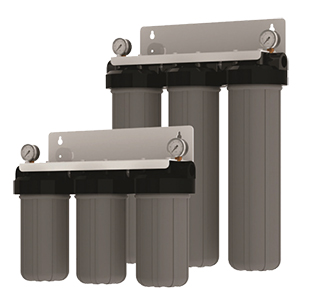

FSD –320 SERIES FEATURES

  • AXEON 0-100 psi Pressure Gauges
  • One 4.5” Diameter Grey and Black Pentek® Housings in 10” or 20” Lengths
  • One White Powder Coated Bracket
  • One Filter Housing Wrench

SPECIFICATIONS

Description Port Size (in) System Size (in)
FSD –100 SERIES
FSD –110 Filtration SystemA 3/4 FNPT 8 x 7.5 x 17.5
FSD –110 Filtration SystemA 1 FNPT 8 x 7.5 x 17.5
FSD –120 Filtration SystemA 3/4 FNPT 8 x 7.5 x 27.5
FSD –120 Filtration SystemA 1 FNPT 8 x 7.5 x 27.5
FSD –200 SERIES
FSD –210 Filtration SystemA 3/4 FNPT 8 x 15 x 17.5
FSD –210 Filtration SystemA 1 FNPT 8 x 15 x 17.5
FSD –220 Filtration SystemA 3/4 FNPT 8 x 15 x 27.5
FSD –220 Filtration SystemA 1 FNPT 8 x 15 x 27.5
FSD –300 SERIES
FSD –310 Filtration SystemA 3/4 FNPT 8 x 22.5 x 17.5
FSD –310 Filtration SystemA 1 FNPT 8 x 22.5 x 17.5
FSD –320 Filtration SystemA 3/4 FNPT 8 x 22.5 x 27.5
FSD –320 Filtration SystemA 1 FNPT 8 x 22.5 x 27.5

A. Cartridges Sold Separately


OPERATING LIMITS

  • Minimum Temperature: 40°F
  • Maximum Temperature: 100°F
  • Minimum Operating Pressure: 45 psi
  • Maximum Operating Pressure: 85 psi
  • Set pressure regulator to 75 psi

Not to be installed outdoors or in areas exposed to extreme climate conditions or outside of operating specifications.
Pressure regulator highly recommended.



MATERIALS OF CONSTRUCTION

  • Housing: Polypropylene
  • Cap: Polypropylene (HFPP)
  • O-Ring: Buna-N

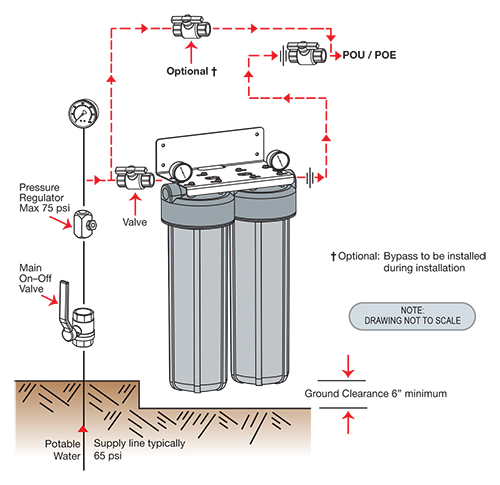

INSTALLATION DIAGRAM FOR WATER FILTRATION SYSTEM
