Ion Exchange Systems

Ion Exchange Water Treatment System: Process Overview

The ion exchange process occurs when contaminated water passes through beds of ion-exchange resin containing millions of microscopic beads. Our commercial and industrial ion exchange solutions transform ordinary water into high-purity water through specialized resin technology. These synthetic resins facilitate the exchange of harmful ions with beneficial ones through the following mechanisms:

Core Process Components

• Cross-link ion exchange resin matrix
• Control valves for automated operation
• Heavy-duty retention elements
• Specialized brine solution system

Treatment Capabilities

• Removes scale-forming calcium and magnesium ions
• Eliminates heavy metals and toxic substances
• Reduces dissolved minerals and ionic compounds
• Controls water hardness levels effectively

Key Operating Parameters

• Operating capacity: 30-300 gallons per minute
• Exchange capacity: 32,000-180,000 grains
• Recovery rate: 90-95% treated water
• Regeneration cycle: Automated based on usage

The ion exchange technology provides consistent water quality by removing unwanted ions through a continuous exchange process, making it ideal for both industrial and commercial applications requiring high-purity water.

Ion Exchange Water Filter Technology

Ion exchange water filters utilize specialized synthetic resins to remove dissolved minerals and ionic contaminants through a chemical process of exchanging ions. The filtration technology operates through a precise mechanism of ionic substitution within a cross-linked resin matrix.

Core Mechanism

The ion exchange process occurs when contaminated water passes through beds of ion-exchange resin containing millions of microscopic beads. These synthetic resins facilitate two primary exchange reactions:

• Cation exchange removes positively charged calcium and magnesium ions
• Anion exchange eliminates negatively charged chloride and sulfide ions

Resin Technology

The filtration system employs high-quality Gel Poly Styrene resin with specific characteristics:

• 8% cross-link structure for optimal ion exchange capacity
• Strong acid cation and strong base anion resins
• Specialized retention elements for maximum contact
• Controlled flow distribution for efficient exchange

Operational Process

The water treatment occurs through sequential steps:

1. Contaminated water enters the resin bed
2. Ionic contaminants attach to exchange sites
3. Beneficial ions release into the water
4. Purified water exits the system

Performance Metrics

• Exchange capacity: 32,000-180,000 grains
• Flow rates: 1-39 gallons per minute
• Recovery rate: 90-95%
• Regeneration efficiency: 85-95%

Contaminant Removal

The technology effectively removes multiple ionic substances:

• Scale-forming hardness minerals
• Heavy metals and toxic compounds
• Dissolved solids and minerals
• Organic matter and ionic pollutants

Core Technology Applications

Commercial Solutions

• Commercial-grade resin systems
• Commercial flow rates: 1-39 GPM
• Commercial facility water treatment
• Commercial water quality management
• Commercial-scale operations

Industrial Solutions

• Industrial process water treatment
• Industrial-grade resin technology
• Industrial water purification
• Industrial-scale operations
• Industrial water management

This advanced filtration technology provides consistent water quality through continuous ion exchange, making it ideal for both industrial processes and commercial applications requiring high-purity water.

Ion Exchange Resin: How It Works

Ion exchange resin consists of synthetic polymers containing charged functional groups that facilitate the exchange of ions in water. The resin beads feature a cross-linked matrix structure with specific exchange sites for removing dissolved minerals and ionic contaminants.

Core Technology Components

• Cross-link ion exchange resin matrix with 8% structure
• Strong acid cation and strong base anion resins
• Gel Poly Styrene crosslinked with DVB composition
• Retention elements for maximum contact time

Exchange Process

The ion exchange process occurs through sequential steps:

1. Contaminated water contacts the resin bed
2. Positively charged calcium and magnesium ions attach to cation exchange sites
3. Negatively charged chloride and sulfate ions bind to anion exchange sites
4. Beneficial sodium ions release into the treated water
5. Purified water exits the system

Performance Characteristics

• Exchange capacity: 32,000-180,000 grains
• Operating flow rates: 1-39 gallons per minute
• Recovery efficiency: 90-95%
• Regeneration cycle: Automated based on usage

Contaminant Removal

The resin technology effectively eliminates:

• Scale-forming hardness minerals
• Heavy metals and toxic compounds
• Dissolved solids and minerals
• Organic matter and ionic substances

This advanced resin technology provides consistent water quality through continuous ion exchange, making it ideal for both industrial processes and commercial applications requiring high-purity water treatment.

Water Softening Systems

AXEON's advanced water softening systems utilize high-capacity ion exchange resin technology to effectively remove hardness minerals from water. These systems feature both single and twin configurations designed for continuous operation and minimal maintenance requirements.

WS-Series Single Systems

• Flow rates: 1-39 gallons per minute
• Capacity range: 32,000-180,000 grains
• 8% cross-link ion exchange resin
• Solid-state microprocessor controls with LED display
• Self-adjusting regeneration cycles based on usage
• Heavy-duty fiberglass tanks with UV protection

TS-Series Twin Systems

• Continuous 24/7 softened water delivery
• Capacity range: 64,000-360,000 grains
• Dual tank configuration for uninterrupted service
• Advanced electronic control system
• Minimal salt and water consumption
• Flow rates up to 50 gallons per minute

Performance Features

• Removes calcium and magnesium ions
• Reduces scale formation in pipes
• Extends equipment lifespan
• Automated regeneration process
• Integrated pretreatment lockout
• Comprehensive monitoring capabilities

Applications

• Residential water treatment
• Convenience stores
• Restaurants and bars
• Laundromats
• Car washes
• Boiler feed systems
• RO pretreatment

The systems include heavy-duty riser pipes, upper and lower screens, and brine tanks with float assemblies for reliable operation. Each unit undergoes rigorous testing to ensure compliance with industry standards and optimal performance in demanding water conditions.

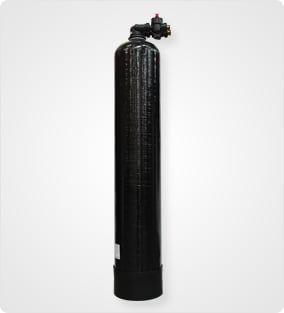

Deionization Systems

AXEON Deionization Systems employ high-quality Gel Poly Styrene resin crosslinked with DVB to remove mineral ions and ionic contaminants from water. These systems effectively eliminate cations like sodium, calcium, and iron, along with anions such as chloride, sulfides, and bromide.

System Components

• Clack 1191 In/Out valve technology
• Non-corrosive UV-resistant valve body
• Heavy-duty fiberglass tank construction
• Specialized riser pipe with lower screen
• Premium ion exchange resin matrix

Performance Specifications

• Flow rates: 4-14 gallons per minute
• Tank sizes: 9" x 48" to 16" x 65"
• Resin capacity: 1-4 cubic feet
• Maximum service flow: 20 GPM
• Operating pressure: 30-100 PSI

Treatment Capabilities

• Removes dissolved minerals
• Eliminates ionic substances
• Reduces total dissolved solids
• Controls water conductivity
• Produces high-purity water

Applications

• Industrial process water
• Laboratory grade water
• Manufacturing facilities
• Power generation plants
• Electronics production
• Medical facilities

The systems feature ANSI/NSF STD 44 compliant fiberglass tanks and simplified maintenance with the Clack 1191 valve, making tank replacements efficient for both residential and commercial applications.

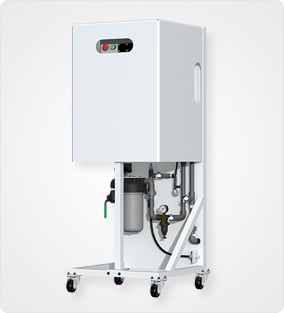

Electrodeionization Systems

AXEON EDI-Series systems utilize advanced electrodeionization technology to produce ultrapure water without chemical regeneration. The systems employ electricity to continuously drive ions through specialized resins and ion-selective membranes, generating high-purity water with minimal waste.

Core Technology

• Chemical-free operation with no regeneration required
• Thin-cell efficient membrane technology
• Patented Excellion membrane design
• Non-scaling electrode system
• Continuous 24/7 operation capability

Performance Specifications

• Flow rates: 1-7 gallons per minute
• Operating pressure: 40-75 PSI
• Recovery rate: 90% or higher
• Product quality: 2-18.2 MΩ
• Power usage: 200-600W nominal

System Features

• Compact aluminum skid design
• 2 MΩ DI sensor with indicator lights
• Internal flow control orifices
• 5-micron pre-filter system
• Feed, product and concentrate ports
• Modular system design

Applications

• Industrial process water
• Laboratory grade water
• Power generation
• Electronics manufacturing
• Medical facilities
• Pharmaceutical production

The EDI systems integrate seamlessly with reverse osmosis pretreatment, providing reliable ultrapure water production while minimizing operational costs through efficient design and chemical-free operation.

Ion Exchange System for Well Water

Ion exchange systems effectively treat well water by removing dissolved minerals, heavy metals, and ionic contaminants through specialized resin technology. The treatment process exchanges harmful ions with beneficial counterions to produce safe, clean water for residential and agricultural use.

Treatment Capabilities

• Removes calcium and magnesium hardness minerals
• Eliminates iron and manganese contamination
• Reduces dissolved solids concentration
• Controls scale-forming compounds
• Maintains proper pH balance

System Components

• High-capacity ion exchange resin bed
• Heavy-duty fiberglass tank construction
• Automated control valve system
• Brine tank with safety float
• Pre-filtration elements
• Retention screens

Commercial Features

• Commercial-grade fiberglass tanks
• Commercial LED monitoring displays
• Commercial facility integration
• Commercial flow optimization
• Commercial process controls

Industrial Features

• Industrial-strength valve bodies
• Industrial-grade distribution systems
• Industrial process controls
• Industrial performance monitoring
• Industrial-scale automation

Performance Specifications

• Flow rates: 4-25 gallons per minute
• Operating pressure: 30-100 PSI
• Resin capacity: 32,000-180,000 grains
• Recovery rate: 90-95%
• Service life: 10-15 years

Well Water Applications

• Residential water treatment
• Agricultural irrigation
• Livestock watering systems
• Food processing facilities
• Commercial operations
• Industrial processes

The systems feature cross-link ion exchange resin technology with automated regeneration cycles, providing consistent water quality while minimizing maintenance requirements for well water applications.

Ion Water Treatment Applications

Ion exchange systems provide specialized water treatment solutions across diverse industrial and commercial settings. The technology effectively removes dissolved minerals, heavy metals, and ionic contaminants through a chemical process using cross-link resin technology.

Industrial Applications

• Process water treatment for manufacturing operations requiring ultra-pure water
• Power generation facilities needing high-purity boiler feed water
• Chemical processing plants requiring deionized water
• Electronics manufacturing demanding mineral-free water
• Industrial cooling systems requiring scale prevention
• Metal finishing operations needing purified process water

Commercial Applications

• Healthcare facilities requiring purified water for medical equipment
• Research laboratories needing analytical-grade water
• Food and beverage production facilities
• Commercial laundry operations
• Hotels and hospitality services
• Pharmaceutical manufacturing facilities

Performance Requirements

• Flow rates: 1-39 gallons per minute
• Operating pressure: 30-100 PSI
• Recovery rate: 90-95%
• Exchange capacity: 32,000-180,000 grains
• Continuous operation capability
• Automated regeneration cycles

The systems effectively remove scale-forming minerals, reduce equipment maintenance costs, and provide consistent water quality for demanding industrial and commercial processes requiring high-purity water treatment solutions.

FAQs - Ion Exchange

Is ion exchange water safe to drink?

Ion exchange treated water is completely safe for drinking and daily consumption. The process removes harmful contaminants like heavy metals and toxic compounds while maintaining beneficial minerals essential for human health. The ion exchange resin technology exchanges unwanted ions with beneficial counterions through a controlled chemical process that meets drinking water safety standards.

What are ions in water?

Ions are electrically charged particles dissolved in water created when minerals and compounds separate into their constituent parts. Common ions include:

• Positively charged cations: calcium, magnesium, sodium
• Negatively charged anions: chloride, sulfate, carbonate
• Scale-forming ions: calcium and magnesium hardness minerals
• Toxic ions: heavy metals and harmful compounds

How does ion exchange water treatment work?

The ion exchange water treatment process operates through a precise chemical mechanism where contaminated water passes through specialized resin beads. The process follows these steps:

1. Water flows through beds of synthetic ion exchange resin
2. Resin beads attract and capture unwanted ions
3. Beneficial ions release from the resin structure
4. Treated water exits with harmful ions removed
5. Automated regeneration refreshes the resin capacity

The system effectively removes dissolved minerals, reduces water hardness, and eliminates ionic contaminants through continuous ion exchange using cross-linked resin technology and controlled flow distribution.

Technical Specifications

The AXEON Water  ion exchange systems feature comprehensive specifications designed for optimal water treatment performance:

System Benefits

Performance Advantages

• Removes calcium and magnesium hardness ions through specialized resin technology
• Eliminates scale-forming compounds using controlled ion exchange process
• Reduces dissolved mineral content through continuous treatment
• Maintains consistent water quality with automated monitoring

Operational Benefits

• Extends equipment lifespan by preventing scale formation
• Minimizes maintenance requirements through self-adjusting cycles
• Reduces operational costs with efficient regeneration
• Provides 24/7 automated operation
• Ensures reliable performance with comprehensive monitoring

The systems deliver optimal water quality while maximizing operational efficiency through advanced ion exchange technology and computerized controls.
