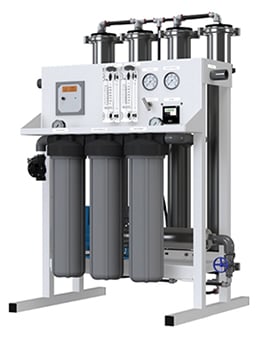

AXEON CT – Series Reverse Osmosis Systems are designed for high performance and are equipped with many standard features in a cost-efficient, compact design.
AXEON CT–Series Reverse Osmosis Systems have been engineered for capacities ranging from 4,000 to 7,000 gallons per day. These models include a microprocessor
controller with low-pressure monitoring and alarm, pretreatment lockout, and tank level input. A TDS monitor, multi-stage booster pump, low energy membranes and three pre-filters are all part of the standard features. Upgrades such as feed flush and a concentrate recycle loop to increase recovery rates are also available.
FEATURES
- Minitrol Computer Controller
- Multi Color LED Indicator Status Light
- Pre-Treatment Lockout
- Tank Level Input
- Low Pressure Monitoring and Alarm
- AXEON HF1–Series Low Energy Membrane Elements
- AXEON 5-Micron Sediment Pre-Filter
- AXEON 10-Micron Carbon Block Pre-Filter
- AXEON 1-Micron Sediment Pre-Filter
- SS –Series Membrane Housings
- Pentek® Single O-Ring Filter Housings
- Goulds® Multi–Stage Booster Pump
- 316L Stainless Steel Concentrate Valve
- Composite Feed Solenoid Valve
- Feed Low Pressure Switch 15-30 psi
- HM Digital™ PSC–150 TDS/Conductivity Controller
- Permeate and Concentrate Flow Meter
- Pre-Filter Pressure Gauges 0-100 psi
- Pump Pressure Gauge 0-300 psi
- Concentrate Pressure Gauge 0-300 psi
- John Guest® Push/Pull Fittings with Locking Safety Clips
- White Powder Coated Aluminum Frame
BENEFITS
- Fully Equipped and Customizable
- Lightweight Design
- Compact Space Saving Design
- Components Easily Accessible
- Pre-Plumbed, Wired and Assembled
- Factory Tested and Preserved
- Low Operation and Maintenance Costs
- Easy Maintenance and Servicing
- 1-Year Limited Warranty
SPECIFICATIONS
| MODELS | CT– 4000 | CT– 5000 | CT– 7000 |
|---|---|---|---|
| Design | |||
| Configuration | Single Pass | Single Pass | Single Pass |
| Feedwater Source (ppm)A | TDS < 2000 | TDS < 2000 | TDS < 2000 |
| Standard Recovery Rate % | 48 | 53 | 62 |
| Recovery with Concentrate Recycle % | Up to 75 | Up to 75 | Up to 75 |
| Flow RatesB | |||
| Permeate Flow (gpm / lpm) | 2.78 / 10.52 | 3.47 / 13.14 | 4.86 / 18.40 |
| Minimum Feed Flow (gpm / lpm) | 5.78 / 21.88 | 6.47 / 24.50 | 7.86 / 29.75 |
| Minimum Concentrate Flow (gpm / lpm) | 3 / 11.36 | 3 / 11.36 | 3 / 11.36 |
| Connections | |||
| Feed (in) | 1 FNPT | 1 FNPT | 1 FNPT |
| Permeate (in) | 1 FNPT | 1 FNPT | 1 FNPT |
| Concentrate (in) | 1 FNPT | 1 FNPT | 1 FNPT |
| Membranes | |||
| Membrane Per Vessel | 1 | 1 | 1 |
| Membrane Quantity | 2 | 3 | 4 |
| Membrane Size | 4040 | 4040 | 4040 |
| Nominal Salt Rejection % | 99 | 99 | 99 |
| Vessels | |||
| Vessel Array | 1:1 | 1:1:1 | 1:1:1:1 |
| Vessel Quantity | 2 | 3 | 4 |
| Pumps | |||
| Pump Type | Multi-Stage | Multi-Stage | Multi-Stage |
| Motor HP | 1.5 | 1.5 | 1.5 |
| RPM @ 60Hz (50 Hz) | 3450 (2900) | 3450 (2900) | 3450 (2900) |
| System Electrical | |||
| Standard Voltage + Amp DrawC | 220V, 60Hz, 1PH, 8.3A | 220V, 60Hz, 1PH, 8.3A | 220V, 60Hz, 1PH, 8.3A |
| High Voltage Service + Amp DrawC | 220V, 50Hz, 1PH, 8.9A 220V, 60Hz, 3PH, 5.1A 220V, 50Hz, 3PH, 6.1A 380V, 50Hz, 3PH, 4.5A 460V, 60Hz, 3PH, 3.5A |
220V, 50Hz, 1PH, 8.9A 220V, 60Hz, 3PH, 5.1A 220V, 50Hz, 3PH, 6.1A 380V, 50Hz, 3PH, 4.5A 460V, 60Hz, 3PH, 3.5A |
220V, 50Hz, 1PH, 8.9A 220V, 60Hz, 3PH, 5.1A 220V, 50Hz, 3PH, 6.1A 380V, 50Hz, 3PH, 4.5A 460V, 60Hz, 3PH, 3.5A |
| System Dimensions | |||
| Approximate Dimensions D L x W x H (in /cm) |
30 x 38 x 47 / 76 x 96 x 119 | 30 x 38 x 47 / 76 x 96 x 119 | 30 x 38 x 47 / 76 x 96 x 119 |
| Approximate Weight (lbs / kg) | 235 / 106.60 | 250 / 113.40 | 265 / 120.20 |
Test Parameters: 550 TDS Filtered (5-Micron), Dechlorinated, Municipal Feedwater, 65 psi / 4.50 bar Feed Pressure, 150 psi / 10.34 bar Operating Pressure, 77°F / 25°C, Recovery as stated, 7.0 pH. Data taken after 60 minutes of operation.
Note: All 50Hz systems come standard with AXEON HF4 –Series Extra Low Energy Membrane Elements.
A. Low temperatures and feedwater quality, such as high TDS levels will significantly affect the systems production capabilities and performance. Computer projections must be run for individual applications which do not meet or exceed minimum and maximum operating limits for such conditions.
B. Product flow and maximum recovery rates are based on feedwater conditions as stated above. Do not exceed recommended permeate flow.
C. Varies with motor manufacturer.
D. Does not include operating space requirements.
OPERATING LIMITS E
| Maximum Feed Temperature (°F / °C) | 85 / 29 | Maximum Turbidity (NTU) | 1 |
| Minimum Feed Temperature (°F / °C) | 40 / 4 | Maximum Free Chlorine (ppm) | 0 |
| Maximum Ambient Temperature (°F / °C) | 120 / 49 | Maximum TDS (ppm) | 2,000 |
| Minimum Ambient Temperature (°F / °C) | 40 / 4 | Maximum Hardness (gpg) | 0 |
| Maximum Feed Pressure (psi / bar) | 85 / 6 | Maximum pH (continuous) | 11 |
| Minimum Feed Pressure (psi / bar) | 45 / 3 | Minimum pH (continuous) | 2 |
| Maximum Operating Pressure (psi / bar) | 150 / 10 | Maximum pH (cleaning 30 minutes) | 13 |
| Maximum Feed Silt Density Index (SDI) | < 3 | Minimum pH (cleaning 30 minutes) | 1 |
E. System pressure is variable due to water conditions. Permeate flow will increase at a higher temperature and will decrease at a lower temperature.
OPTIONS
- Minitrol IF Computer Controller with Feed Flush
- S –150 Computer Controller with Feed Flush and Dual TDS
- S –150 Computer controller Expander Board I/O
- AXEON HF4 –Series Extra Low Energy Membrane Elements
- AXEON HF5 –Series Ultra Low Energy Membrane Elements
- AXEON NF3 – Series Nanofiltration Membrane Elements
- AXEON NF4 – Series Nanofiltration Membrane Elements
- FRP–Series Membrane Housings
- Goulds® Multi-Stage Stainless Steel Booster Pump
- Blending Valve
- Chemical Pump Outlet
- Concentrate Recycle Valve with Flow Meter
- High Pressure Tank Switch
- Permeate Sample Ports
- Pump Pressure Relief Valve
- Single Wooden Shipping Crate
- Double Wooden Shipping Crate
THE RIGHT SOLUTION FOR YOU
Contact us today for more information about our products and services.
