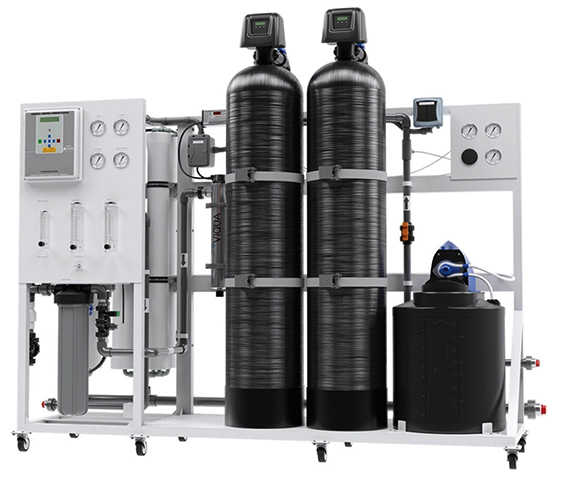

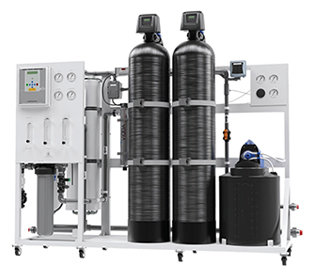

AXEON® PWS– Series Packaged Water Systems are water purification pre-treatment solutions for AXEON R1– Series Reverse Osmosis Systems. These plug-and-play skids come pre-assembled, prewired and pre-plumbed, making installation turnkey. AXEON PWS– Series Packaged Water Systems are an ideal solution for applications such as horticulture, car washes, water stores, water jet cutting, manufacturing, and other industrial applications.

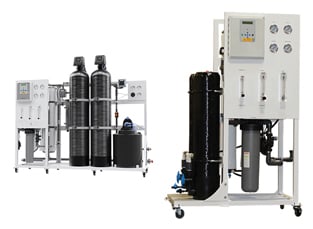

AXEON features a total of four (4) skids that match up to our nine (9) different models of reverse osmosis systems featured below:
SPECIFICATIONS
| Model | RO Flow Rates | System Dimensions (in / cm) | Part | Pre-Treatment | Post Treatment |
Approx. Shipping Weight (lb / kg) |
|||||
| GPD | m³/day | Length | Width | Height | Skid Part Number | Zeolite (in) | GACC (in) | Chemical Injection (GPD) | Ultraviolet (GPM) | ||
| R1–1140 | 1,800 | 6.8 | 29 / 73.6 | 96 / 244 | 81 / 206 | 211837 | 12 x 52 | 12 x 52 | 4 | 12 | 920 / 420 |
| R1– 2140 | 3,600 | 13.6 | 29 / 73.6 | 96 / 244 | 81 / 206 | 211838 | 16 x 53 | 16 x 53 | 15 | 12 | 1,275 / 580 |
| R1– 3140 | 5,400 | 18.9 | 29 / 73.6 | 96 / 244 | 81 / 206 | 211838 | 16 x 53 | 16 x 53 | 15 | 12 | 1,375 / 625 |
| R1– 4140 | 7,200 | 24.6 | 34 / 86 | 96 / 244 | 81 / 206 | 211839 | 16 x 65 | 16 x 65 | 15 | 30 | 1500 / 680 |
| R1– 5140 | 9,000 | 30.2 | 34 / 86 | 96 / 244 | 81 / 206 | 211839 | 16 x 65 | 16 x 65 | 15 | 30 | 1550 / 703 |
| R1– 6140 | 10,800 | 35.9 | 34 / 86 | 96 / 244 | 81 / 206 | 211839 | 16 x 65 | 16 x 65 | 15 | 30 | 1,650 / 748 |
| R1– 8140 | 14,400 | 54.5 | 34 / 86 | 120 / 304 | 81 / 206 | 211840 | 18 x 65 | 18 x 65 | 15 | 30 | 1,700 / 771 |
| R1–10140 | 18,000 | 68 | 34 / 86 | 120 / 304 | 81 / 206 | 211840 | 18 x 65 | 18 x 65 | 15 | 30 | 1,895 / 860 |
| R1–12140 | 21,600 | 81.8 | 34 / 86 | 120 / 304 | 81 / 206 | 211840 | 18 x 65 | 18 x 65 | 15 | 30 | 1,945/ 882 |
| Part Number | Item Description |
| 211837 | SYSTEM, SKID, W/PRETREATMENT, 1252 ZEOLITE, 1252 GACC, 4GPD CHEM INJ, 12 GPM UV, AXEON |
| 211838 | SYSTEM, SKID, W/PRETREATMENT, 1653 ZEOLITE, 1653 GACC, 15GPD CHEM INJ, 12 GPM UV, AXEON |
| 211839 | SYSTEM, SKID, W/PRETREATMENT, 1665 ZEOLITE, 1665 GACC, 15GPD CHEM INJ, 30 GPM UV, AXEON |
| 211840 | SYSTEM, SKID, W/PRETREATMENT, 1865 ZEOLITE, 1865 GACC, 15GPD CHEM INJ, 30 GPM UV, AXEON |
OPERATING LIMITS E
| Maximum Feed Temperature (°F / °C) | 85 / 29 | Maximum Free Chlorine (ppm) | < 3 |
| Minimum Feed Temperature (°F / °C) | 40 / 4 | Maximum TDS (ppm) | 2,000 |
| Maximum Ambient Temperature (°F / °C) | 120 / 49 | Maximum Hardness (gpg) | 300 |
| Minimum Ambient Temperature (°F / °C) | 40 / 4 | Maximum pH (continuous) | 11 |
| Maximum Feed Pressure (psi / bar) | 85 / 6 | Maximum pH (continuous) | 2 |
| Minimum Feed Pressure (psi / bar) | 45 / 3 | Maximum pH (cleaning 30 minutes) | 13 |
| Maximum Pressure (psi / bar) | 85 / 5.8 | Maximum pH (cleaning 30 minutes) | 1 |
| Maximum Feed Silt Density Index (SDI) | < 5 | Maximum Turbidity NTU | 1 |
A. System pressure is variable due to water conditions. Permeate flow will increase at a higher temperature and will decrease at a lower temperature.
-

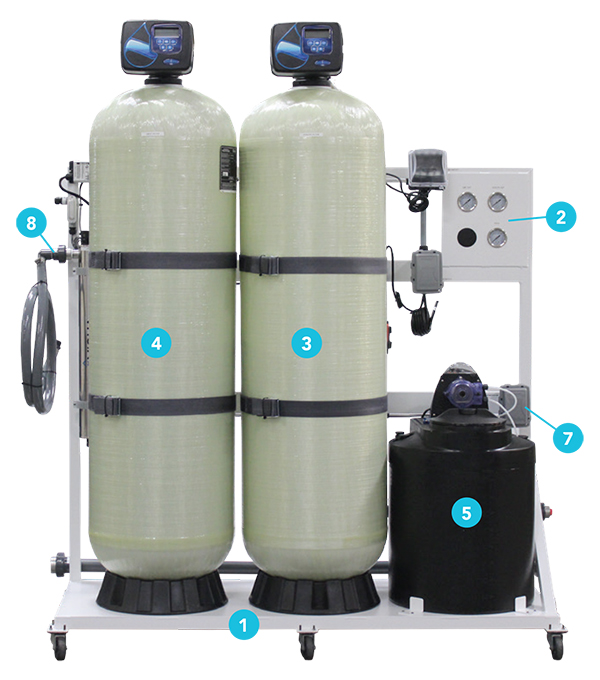

1
Frame/Skid
Heavy-duty reinforced aluminum with epoxy powder coating for corrosion resistance; caster wheels for ease of movement.
-
2
Integrated Instrumentation
Allows for easier monitoring of the system’s pressures and performance.
-
3
Zeolite Filter
Automatic backwashing zeolite system for the reduction of sediments down to 5 microns.
-
4
Granulated Activated Catalytic Carbon (GACC) Filter
Automatic backwashing carbon system for the effective reduction of chlorine, VOCs, THM and other contaminants.
-
5
Chemical Injection System
Automatic dosing of antiscalant for maximum membrane protection from calcium, magnesium carbonate (hardness), iron, manganese and silica (SiO2).
-
6
Ultraviolet (UV) System (not pictured above)
Automatic ultraviolet disinfection system for the reduction of bacteria and viruses.
-
7
Electrical
Integrated power outlets and all wiring to code for one electrical connection for 220 volts.
-
8
Plumbing
Aligned piping and conveniently located utility connections for the feed, permeate and concentrate water inlets/outlets.
AXEON PWS– Series feature a proven and reliable design with many top brand-name components and accessories. All AXEON water systems are rigorously tested and qualified prior to shipment for trouble-free operation. With over 30 years of experience in manufacturing membrane systems and products, we strive to design systems for long-term performance and minimization of membrane fouling.
PWS– Series Packaged Water Systems (RO System Not Included)
