AXEON® Repressurization Skids are engineered and manufactured to work independently or alongside other water treatment systems to offer customers a complete integrated solution. These repressurization skids can be used as a method for delivering treated water or as a booster pump for a raw water supply or to transfer waste to another point.

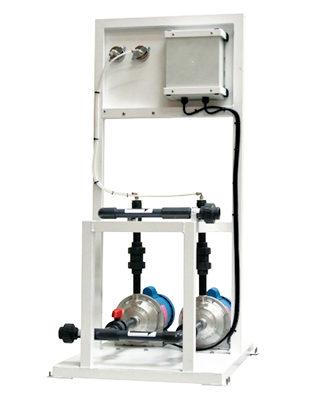

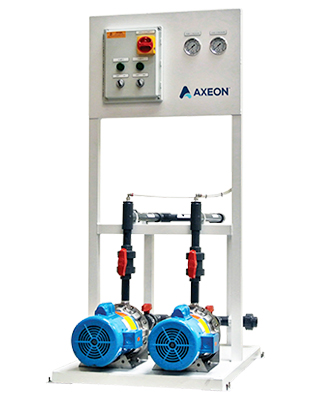

AXEON Repressurization Skids feature a compact mobile design which utilizes single or dual alternating pumps for continuous operation and inlet water pressure boosting. These units feature a white powder coated aluminum frame for corrosion resistance. Each system is pre-plumbed, pre-wired, assembled and quality tested for immediate online service and reduced installation and maintenance costs.
FEATURES
- White Powder Coated Aluminum Frame
- Stainless Steel Pumps for Redundancy
- TEFC Motor with Thermal Motor Protection
- Automatic On/Off Capability
- Pre-Wired Pump Motor Starter Panel UL/CUL 508A
- Circuit Breaker Disconnect Switch
- PVC Piping
- 316 Stainless Steel 0 -100 psi Outlet Pressure Gauges
- Pump Discharge Check Valves
- Isolation Valves for Each Pump
- Panel Mounted Operator Lights and Switches
SPECIFICATIONS

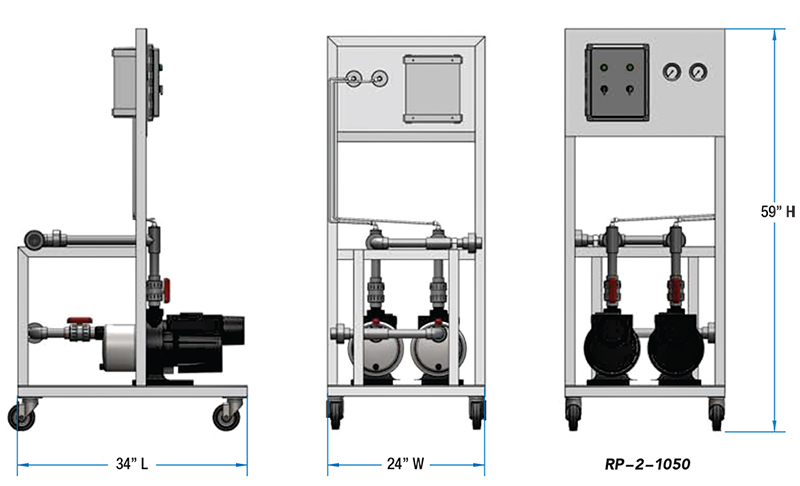

| Model | GPM (psi) | Standard Voltage | Voltage Options | Pump Type | Motor HP (Per Pump) | Dimensions L x W x H (in) | Weight (lbs) |
|---|---|---|---|---|---|---|---|
| RP–2–1050 | 10 @ 50 | 220V, 60Hz, 1Ph | 220V, 60Hz, 3Ph 380V, 50 Hz, 3Ph 460V, 60 Hz, 3Ph | Single-Stage | 1 | 34 x 24 x 59 | 175 |
| RP–2–2050 | 20 @ 50 | 220V, 60Hz, 1Ph | 220V, 60Hz, 3Ph 380V, 50 Hz, 3Ph 460V, 60 Hz, 3Ph | Single-Stage | 1 | 34 x 24 x 59 | 200 |
| RP–2–3550 | 35 @ 50 | 220V, 60Hz, 1Ph | 220V, 60Hz, 3Ph 380V, 50 Hz, 3Ph 460V, 60 Hz, 3Ph | Single-Stage | 1 | 34 x 24 x 59 | 225 |
| RP–2–5050 | 50 @ 50 | 220V, 60Hz, 3Ph | 380V, 50 Hz, 3Ph 460V, 60 Hz, 3Ph | Single-Stage | 1 | 34 x 24 x 59 | 250 |
| RP–2–10050 | 100 @ 50 | 220V, 60Hz, 3Ph | 380V, 50 Hz, 3Ph 460V, 60 Hz, 3Ph | Single-Stage | 1 | 34 x 24 x 59 | 275 |
| RP–2–15050 | 150 @ 50 | 220V, 60Hz, 3Ph | 380V, 50 Hz, 3Ph 460V, 60 Hz, 3Ph | Single-Stage | 1 | 34 x 24 x 59 | 275 |
| RP–2–20050 | 200 @ 50 | 220V, 60Hz, 3Ph | 380V, 50 Hz, 3Ph 460V, 60 Hz, 3Ph | Single-Stage | 1 | 34 x 24 x 59 | 275 |
NOTE: All dimensions and weights are approximate. All systems come packaged in a cardboard box. Wood crating is optional.
OPTIONS AND UPGRADES
- Flow Meters for Output Flow
- Variable Frequency Drive
- 304 / 316 Stainless Steel Piping
- Multi-Stage Pumps for Higher Discharge Pressures
- UV Sterilizer and Post-Filter Housings
