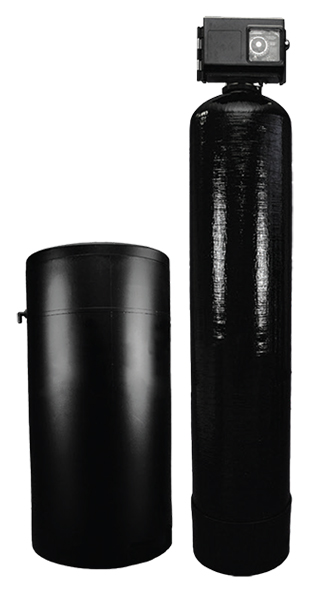

AXEON® Water Softener Systems use advanced ion exchange resin technology in order to meet the most demanding water conditions. These systems are designed for maximum performance with a minimal amount of maintenance and comply with all industry standards and specifications.
AXEON Water Softener Systems offer a new dimension in water treatment equipment and have been engineered with both the installer and consumer in mind. Systems are available in many different models and may be customized to fit your needs. AXEON Water Softener Systems can be used in a variety of applications including residential, commercial, industrial and specialty.
AXEON Water Softener Systems are effective in reducing hardness, and regenerate based on measured gallon flow-through. AXEON Water Softener Systems require periodic backwashing to dispose of accumulated hardness ions. Backwashing allows for removal of contaminants through regeneration with a sodium chloride or potassium chloride solution.
FEATURES
- Fleck® Metered Control Valve
- Easy to Program SXT Electronics
- Pre-Treat Lockout Contacts
- 48 Hour Power Backup
- Day-of-the-Week Controls
- Regeneration Can Be Triggered Immediately
- Structural® Heavy Duty Fiberglass Tank
- Heavy Duty Riser Pipe with Upper and Lower Screens
- 10% Cross-Link Ion Exchange Resin
- Brine Tank with Float Assembly and Salt Grid
TECHNICAL SPECIFICATIONS
| Part Number | Valve | Voltage | DLFC | Estimated Peak Flow (gpm) | Approx. GPG Capacity | Backwash Rate (gpm) | Recommended Service Flow (gpm) |
|---|---|---|---|---|---|---|---|
| 200193 | 5600SXT | 110V | 3 | 10.0 | 30,000 | 3 | 1.3-8.0 |
| 203220 | 5600SXT | 220V | 3 | 10.0 | 30,000 | 3 | 1.3-8.0 |
| 200194 | 5600SXT | 110V | 3 | 10.0 | 45,000 | 3 | 1.6-10.0 |
| 203221 | 5600SXT | 220V | 3 | 10.0 | 45,000 | 3 | 1.6-10.0 |
| 200198 | 7000SXT | 110V | 4 | 15.0 | 60,000 | 4 | 2.3-15.0 |
| 203225 | 7000SXT | 220V | 4 | 15.0 | 60,000 | 4 | 2.3-15.0 |
| 205534 | 7000SXT | 110V | 5 | 18.0 | 75,000 | 5 | 2.8-18.0 |
| 205536 | 7000SXT | 220V | 5 | 18.0 | 75,000 | 5 | 2.8-18.0 |
| 205535 | 7000SXT | 110V | 6 | 20.0 | 90,000 | 6 | 3.2-20.0 |
| 205537 | 7000SXT | 220V | 6 | 20.0 | 90,000 | 6 | 3.2-20.0 |
| 200199 | 7000SXT | 110V | 7 | 20.0 | 120,000 | 7 | 4.2-20.0 |
| 203623 | 7000SXT | 220V | 7 | 20.0 | 120,000 | 7 | 4.2-20.0 |
| 200208 | 2850S SXT | 110V | 12 | 45.0 | 180,000 | 12 | 13.0-45.0 |
| 203176 | 2850S SXT | 220V | 12 | 45.0 | 180,000 | 12 | 13.0-45.0 |
| 200210 | 2850S SXT | 110V | 15 | 52.0 | 300,000 | 15 | 15.0-52.0 |
| 203178 | 2850S SXT | 220V | 15 | 52.0 | 300,000 | 15 | 15.0-52.0 |
SIZE SPECIFICATIONS
| Part Number | Tank Quantity | Brine Tank Size (in) | Tank Size (in) | Cubic Feet | Connection (in) | Shipping Weight (lbs) | System Assembled |
|---|---|---|---|---|---|---|---|
| 200193 | 1 | 18 x 33 | 9 x 48 | 1 | 3/4 MNPT | 110 | Assembled |
| 203220 | 1 | 18 x 33 | 9 x 48 | 1 | 3/4 MNPT | 110 | Assembled |
| 200194 | 1 | 18 x 33 | 10 x 54 | 1.5 | 3/4 MNPT | 130 | Assembled |
| 203221 | 1 | 18 x 33 | 10 x 54 | 1.5 | 3/4 MNPT | 130 | Assembled |
| 200198 | 1 | 18 x 33 | 12 x 52 | 2 | 1 MNPT | 190 | Assembled |
| 203225 | 1 | 18 x 33 | 12 x 52 | 2 | 1 MNPT | 190 | Assembled |
| 205534 | 1 | 18 x 40 | 13 x 54 | 2.5 | 1 MNPT | 215 | Assembled |
| 205536 | 1 | 18 x 40 | 13 x 54 | 2.5 | 1 MNPT | 215 | Assembled |
| 205535 | 1 | 24 x 40 | 14 x 65 | 3 | 1 MNPT | 240 | Assembled |
| 205537 | 1 | 24 x 40 | 14 x 65 | 3 | 1 MNPT | 240 | Assembled |
| 200199 | 1 | 24 x 40 | 16 x 65 | 4 | 1 MNPT | 240 | Non-Assembled |
| 203623 | 1 | 24 x 40 | 16 x 65 | 4 | 1 MNPT | 240 | Non-Assembled |
| 200208 | 1 | 24 x 54 | 21 x 62 | 6 | 1.5 MNPT | 550 | Non-Assembled |
| 203176 | 1 | 24 x 54 | 21 x 62 | 6 | 1.5 MNPT | 550 | Non-Assembled |
| 200210 | 1 | 24 x 54 | 24 x 72 | 10 | 1.5 MNPT | 925 | Non-Assembled |
| 203178 | 1 | 24 x 54 | 24 x 72 | 10 | 1.5 MNPT | 925 | Non-Assembled |
OPTIONS AND UPGRADES
- Yokes and Bypass Valves
- Various Sizes and Types of Connectors
- Stainless Steel Jackets
