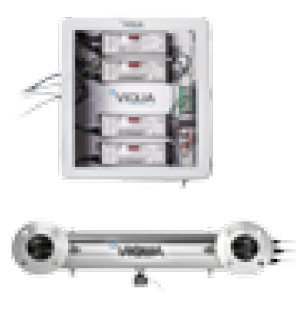

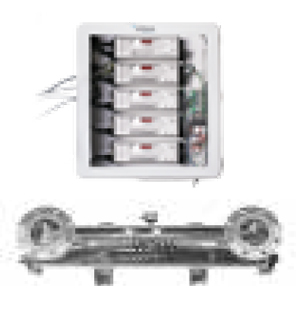

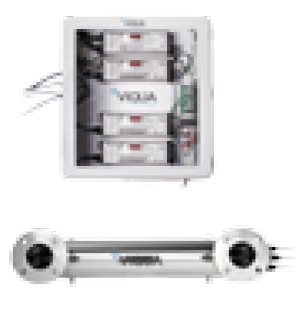

Ultraviolet Water Disinfection Systems
The quality of drinking water can change with time and become contaminated with harmful bacteria. The PROFESSIONAL family of compact UV disinfection systems provide a reliable, economical, and chemical-free way to safeguard drinking water in any light commercial application. VIQUA’s products have been designed and tested to ensure quality drinking water is at everyone’s finger tips.
Regardless of your need, there is a VIQUA system to suit your requirements. VIQUA’s High-Flow series offers systems with flow rates of up to 290 GPM (65 m3/hr) for facilities with higher water demands.
VIQUA’s line of High Flow UV water disinfection systems have been specifically designed to extend the flow rate range of drinking water that can be safeguarded using the proven and trusted technology already offered by the VIQUA family of products.
FEATURES OF VIQUA UV WATER DISINFECTION SYSTEMS
- Equipped to inactivate harmful microorganisms in water
flows up to 290 GPM (65 m3/hr). - Specially designed and tested Sterilume-HO lamps
provide consistent and reliable UV output over the entire
life of the lamp (9000 hours) to ensure continuous
purification. - Superior quality 316 stainless steel chamber.
- Separate control panel with power isolation.
- Visual display of lamp life remaining and audible/visual
lamp change reminder. - Specialised 254nm UV intensity sensor available
(SHFM models) with output to enable solenoid valve or
remote alarm.
SPECIFICATIONS
|
|
|
 |
 |
 |
|
| MODELS | ||||||
| N. America | SHF-140 | SHF-180 | SHF-290 | SHFM-140 | SHFM-180 | SHFM-290 |
| EU CEE 7/7 | SHF-140/2 | SHF-180/2 | SHF-290/2 | SHFM-140/2 | SHFM-180/2 | SHFM-290/2 |
| AUS/NZ 3112 | SHF-140/2A | SHF-180/2A | SHF-290/2A | SHFM-140/2A | SHFM-180/2A | SHFM-290/2A |
| UK BS 1363 | SHF-140/2B | SHF-180/2B | SHF-290/2B | SHFM-140/2B | SHFM-180/2B | SHFM-290/2B |
| FLOW RATES (@ 95% UVT) |
||||||
| US Public Health (16 mJ/cm2) |
310 GPM (1170 lpm) (70 m3/hr) |
350 GPM (1300 lpm) (78 m3/hr) |
543 GPM (2055 lpm) (123 m3/hr) |
310 GPM (1300 lpm) (78 m3/hr) |
350 GPM (1300 lpm) (78 m3/hr) |
543 GPM (2055 lpm) (123 m3/hr) |
| VIQUA Standard (30 mJ/cm2) | 170 GPM (640 lpm) (38 m3/hr) |
210 GPM (790 lpm) (47 m3/hr) |
290 GPM (1098 lpm) (65 m3/hr) |
170 GPM (640 lpm) (38 m3/hr) |
210 GPM (790 lpm) (47 m3/hr) |
290 GPM (1098 lpm) (65 m3/hr) |
| NSF/EPA (40 mJ/cm2) | 125 GPM (470 lpm) (28 m3/hr) |
160 GPM (600 lpm) (36 m3/hr) |
215 GPM (813 lpm) (48 m3/hr) |
125 GPM (470 lpm) (28 m3/hr) |
160 GPM (600 lpm) (36 m3/hr) |
215 GPM (813 lpm) (48 m3/hr) |
| DIMENSIONS | ||||||
| Chamber | 34” x 6” x 14” (86.4 cm x 15.2 cm x 35.6 cm) |
42.5” x 6” x 14” (107.3 cm x 15.2 cm x 35.6 cm) |
42.5” x 8” x 17” (108 cm x 20.3 cm x 43.5 cm) |
34” x 6” x 14” (86.4 cm x 15.2 cm x 35.6 cm) |
42.5” x 6” x 14” (107.3 cm x 15.2 cm x 35.6 cm) |
42.5” x 8” x 17” (108 cm x 20.3 cm x 43.5 cm) |
| Controller | 17.5” x 19.5” x 8.2” (44.5 cm x 50 cm x 21 cm) |
17.5” x 19.5” x 8.2” (44.5 cm x 50 cm x 21 cm) |
17.5” x 19.5” x 8.2” (44.5 cm x 50 cm x 21 cm) |
17.5” x 19.5” x 8.2” (44.5 cm x 50 cm x 21 cm) |
17.5” x 19.5” x 8.2” (44.5 cm x 50 cm x 21 cm) |
17.5” x 19.5” x 8.2” (44.5 cm x 50 cm x 21 cm) |
| Inlet/Outlet Port Size | 3” FLANGE | 3” FLANGE | 4” FLANGE | 3” FLANGE | 3” FLANGE | 4” FLANGE |
| Shipping Weight | 96 lbs (43.5 kg) | 99 lbs (45 kg) | 286.5 lbs (129.7 kg) | 96.5 lbs (43.7 kg) | 99.5 lbs (45.1 kg) | 287 lbs (130.1 kg) |
| ELECTRICAL | ||||||
| Voltage | 100-240V / 50-60 Hz | 100-240V / 50-60 Hz | 100-240V / 50-60 Hz | 100-240V / 50-60 Hz | 100-240V / 50-60 Hz | 100-240V / 50-60 Hz |
| Power Consumption | 350 W | 440 W | 550 W | 350 W | 440 W | 550 W |
| Maximum Operating Pressure | 125 psi (8.62 bar) | 125 psi (8.62 bar) | 125 psi (8.62 bar) | 125 psi (8.62 bar) | 125 psi (8.62 bar) | 125 psi (8.62 bar) |
| Influent Water Temperature | 2-40°C (36-104°F) | 2-40°C (36-104°F) | 2-40°C (36-104°F) | 2-40°C (36-104°F) | 2-40°C (36-104°F) | 2-40°C (36-104°F) |
| Number of Lamps | 4 | 4 | 5 | 4 | 4 | 5 |
| FEATURES | ||||||
| Visual “Power On” | YES | YES | YES | YES | YES | YES |
| Chamber Material | 316L SS | 316L SS | 316L SS | 316L SS | 316L SS | 316L SS |
| Visual Lamp Life Remaining | YES | YES | YES | YES | YES | YES |
| Audible Lamp Failure | YES | YES | YES | YES | YES | YES |
| Audible Lamp Replacement Reminder | YES | YES | YES | YES | YES | YES |
| UV Sensor | NO | NO | NO | YES | YES | YES |
| Sensor Reading Output | – | – | – | Optional with 260134 | Optional with 260134 | Optional with 260134 |
| Solenoid Valve Output | – | – | – | Optional | Optional | Optional |
REPLACEMENT PARTS
| SHF-140 | SHF-180 | SHF-290 | SHFM-140 | SHFM-180 | SHFM-290 | ||
|---|---|---|---|---|---|---|---|
| S740RL-4C | UV Lamp | – | – | – | – | ||
| S950RL-4C | UV Lamp | – | – | ||||
| QS-012 | Quartz Sleeve | – | – | – | – | ||
| QS-180 | Quartz Sleeve | – | – | – | – | ||
| QSO-950 | Quartz Sleeve | – | – | – | – | ||
| 254NM-HF | UV Sensor | – | – | – | – | ||
| BA-ICE-HF | Controller | ||||||
| BA-ICE-M-HF | Controller | – | – | – |
WATER QUALITY PARAMETERS
| Hardness | Iron | Tannins |
|---|---|---|
| < 7 grains (120 mg/L) | < 0.3 mg/L | < 0.1 mg/L |
*@ 95% UVT and 20°C
