Ultraviolet Water Disinfection Systems
The quality of drinking water can change with time and become contaminated with harmful bacteria. TheTAP family of compact UV disinfection systems provide a reliable, economical, and chemical-free way to safeguard drinking water in any residential application. VIQUA’s products have been designed and tested to ensure quality drinking water is at everyone’s finger tips.

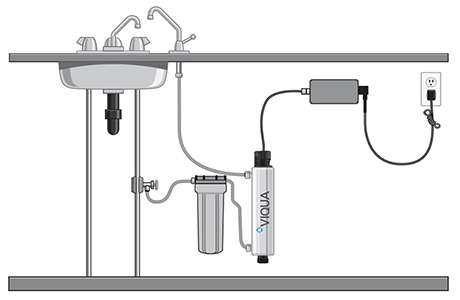

Regardless of your need, there is a VIQUA system to suit your requirements. VIQUA offers systems that range in flow rates from just 1 GPM (0.25 m3/hr) for a single faucet up to 3.5 GPM (0.8 m3/hr) for a small home or cottage.
FEATURES OF VIQUA UV WATER DISINFECTION SYSTEMS
-
Equipped to inactivate chlorine-resistant parasites such as
Cryptosporidium and Giardia, harmful bacteria like E.Coli, and viruses
not visible to the naked eye. -
Specially designed and tested Sterilume™-EX lamps provide consistent and
reliable ultraviolet output over the entire life of the lamp (9000
hours) to ensure continuous purification. -
Safety-Loc™ connector with interlock that ensures power is disconnected
before lamp can be removed, hidden ground wire.
- The system is easy to maintain and service.
-
Built with a durable stainless steel chamber to prolong life and
eliminate ultraviolet light degradation. - The power supply features an LED power/lamp on indicator.
SPECIFICATIONS
|
|
|
||

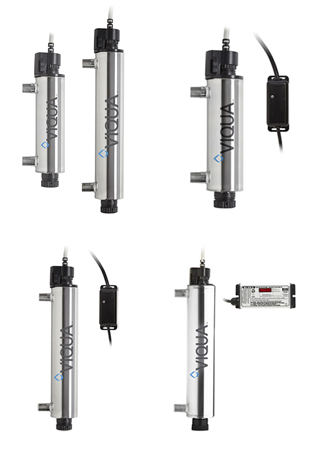

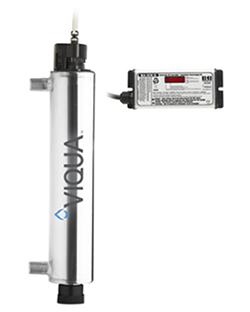

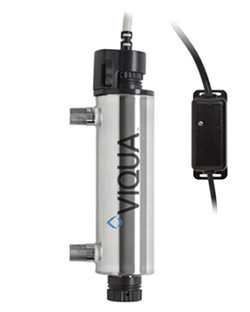

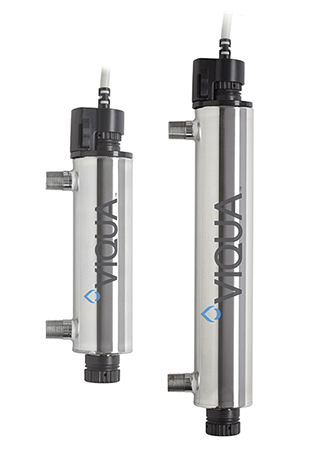

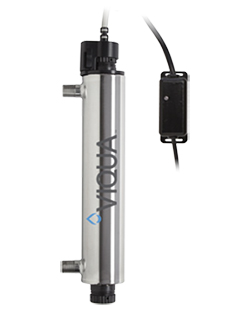

| MODELS | VT1; VT1/2; VT1/2A; VT1/2B | VT4; VT4/2; VT4/2A; VT4/2B | S2Q-PA; S2Q-PA/2; S2Q-PA/2A; S2Q-PA/2B | |
|---|---|---|---|---|

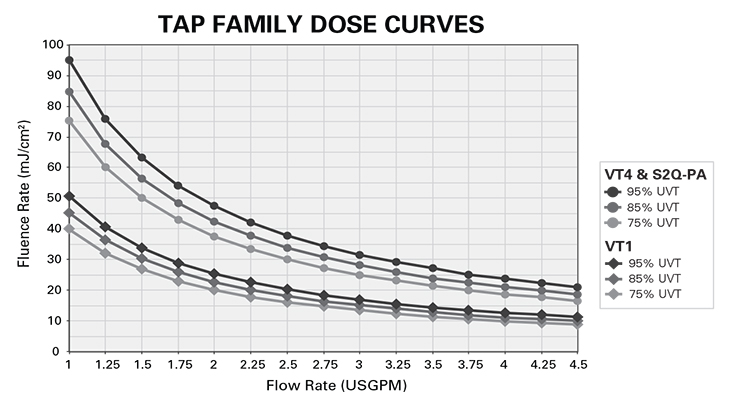

| FLOW RATES (@ 95% UVT) | ||||
| US Public Health (16 mJ/cm2) | 2 GPM (8 lpm) (0.5 m3/hr) | 6.5 GPM (24 lpm) (1.4 m3/hr) | 5 GPM (18 lpm) (1.1 m3/hr) | |
| VIQUA Standard (30 mJ/cm2) | 1 GPM (4 lpm) (0.25 m3/hr) | 3.5 GPM (13 lpm) (0.8 m3/hr) | 3 GPM (11 lpm) (0.7 m3/hr) | |
| NSF/EPA (40 mJ/cm2) | 0.7 GPM (3 lpm) (0.2 m3/hr) | 2.5 GPM (9 lpm) (0.6 m3/hr) | 2 GPM (8 lpm) (0.4 m3/hr) | |
| DIMENSIONS | ||||
| Chamber | 12.5” x 2.5” (31.75 cm x 6.5 cm) | 17” x 2.5” (43.6 cm x 6.5 cm) | 17” x 2.5” (43.6 cm x 6.5 cm) | |
| Controller | 12 1/2” x 2 1/2” (31.8 cm x 6.5 cm) | 15” x 2 1/2” (38 cm x 6.5 cm) | 15” x 2 1/2” (38 cm x 6.5 cm) | |
| Inlet/Outlet Port Size | 3/8” FNPT / 1/2” MNPT* | 1/2” MNPT* | 1/2” MNPT* | |
| Shipping Weight | 4 lbs (1.8 kg) | 6.5 lbs (2.8 kg) | 7 lbs (3.2 kg) | |
| ELECTRICAL | ||||
| Voltage | 100-140V | 100-140V | 100-140V | |
| Voltage (/2, /2A, /2B) | 200-240V | 200-240V | 200-240V | |
| Power Consumption | 13 W | 20 W | 22 W | |
| Maximum Operating Pressure | 125 psi (8.62 bar) | 125 psi (8.62 bar) | 125 psi (8.62 bar) | |
| Influent Water Temperature | 2-40°C (36-104°F) | 2-40°C (36-104°F) | 2-40°C (36-104°F) | |
| FEATURES | ||||
| Visual “Power On” | YES | YES | YES | |
| Chamber Material | 304 SS | 304 SS | 304 SS | |
| Visual Lamp Life Remaining | NO | NO | YES | |
| Audible Lamp Failure | NO | NO | YES | |
| Audible Lamp Replacement Reminder | NO | NO | YES | |
* /2B – BSP
REPLACEMENT PARTS
| S212RL – UV lamp for VT1 | BA-VT – controller for VT1 & VT4 |
| S330RL – UV lamp for VT4 & S2Q-PA | BA-VT/2 – controller for VT1/2 & VT4/2 |
| QS-212 – quartz sleeve for VT1 | BA-VT/2A – controller for VT1/2A & VT4/2A |
| QS-330 – quartz sleeve for VT4 & S2Q-PA | BA-VT/2B – controller for VT1/2B & VT4/2B |
| 410867 – o-ring for quartz sleeve | BA-ICE-S – controller for S2Q-PA |
WATER QUALITY PARAMETERS
| Hardness | Iron | Tannins |
|---|---|---|
| < 7 grains (120 mg/L) | < 0.3 mg/L | < 0.1 mg/L |
